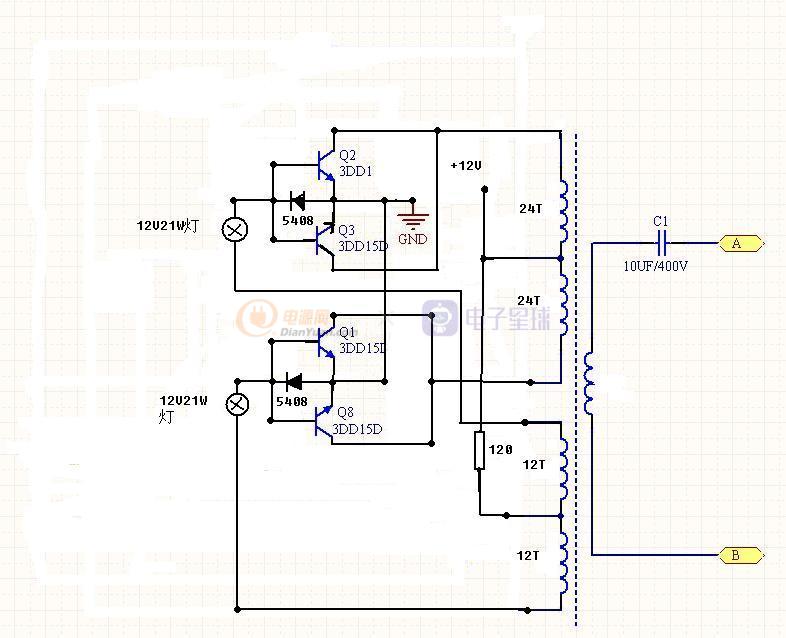

500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/2451421247575428.jpg?x-oss-process=image/watermark,g_center,image_YXJ0aWNsZS9wdWJsaWMvd2F0ZXJtYXJrLnBuZz94LW9zcy1wcm9jZXNzPWltYWdlL3Jlc2l6ZSxQXzQwCg,t_20');}" onmousewheel="return imgzoom(this);">也上个自激机图.
以前做过的一个自激机图,不会画图,画得不好见谅.500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/2451421247575428.jpg?x-oss-process=image/watermark,g_center,image_YXJ0aWNsZS9wdWJsaWMvd2F0ZXJtYXJrLnBuZz94LW9zcy1wcm9jZXNzPWltYWdlL3Jlc2l6ZSxQXzQwCg,t_20');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/2451421247575428.jpg?x-oss-process=image/watermark,g_center,image_YXJ0aWNsZS9wdWJsaWMvd2F0ZXJtYXJrLnBuZz94LW9zcy1wcm9jZXNzPWltYWdlL3Jlc2l6ZSxQXzQwCg,t_20');}" onmousewheel="return imgzoom(this);">全部回复(13)
正序查看
倒序查看
@四通阀
不要灯和二极管也可以.
500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/1551661247673261.jpg');}" onmousewheel="return imgzoom(this);">本来这个图单边.双边都能工作的.也可接成双变jj.用复合管会更好用 0
@珊瑚虫
本图反馈组单组就行,用一个灯泡.简单好用!!
这不就改成我几十年前的用的图
500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/1551661247745394.gif');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/1551661247745394.gif');}" onmousewheel="return imgzoom(this);"> 0
@骗子克星
单端反激开关电源输出串电容,让人费解.而且这个电路功率很难做大,怀疑是否能下水.
我的意思是这样
500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/2818961247793188.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='这是一张缩略图，点击可放大。\n按住CTRL，滚动鼠标滚轮可自由缩放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/79/2818961247793188.jpg');}" onmousewheel="return imgzoom(this);"> 0
